An aero-mechanical controlled float bed with nano-metric positioning system, complete design and render project.
Nano-metric lithography aero mechanical bed
Description

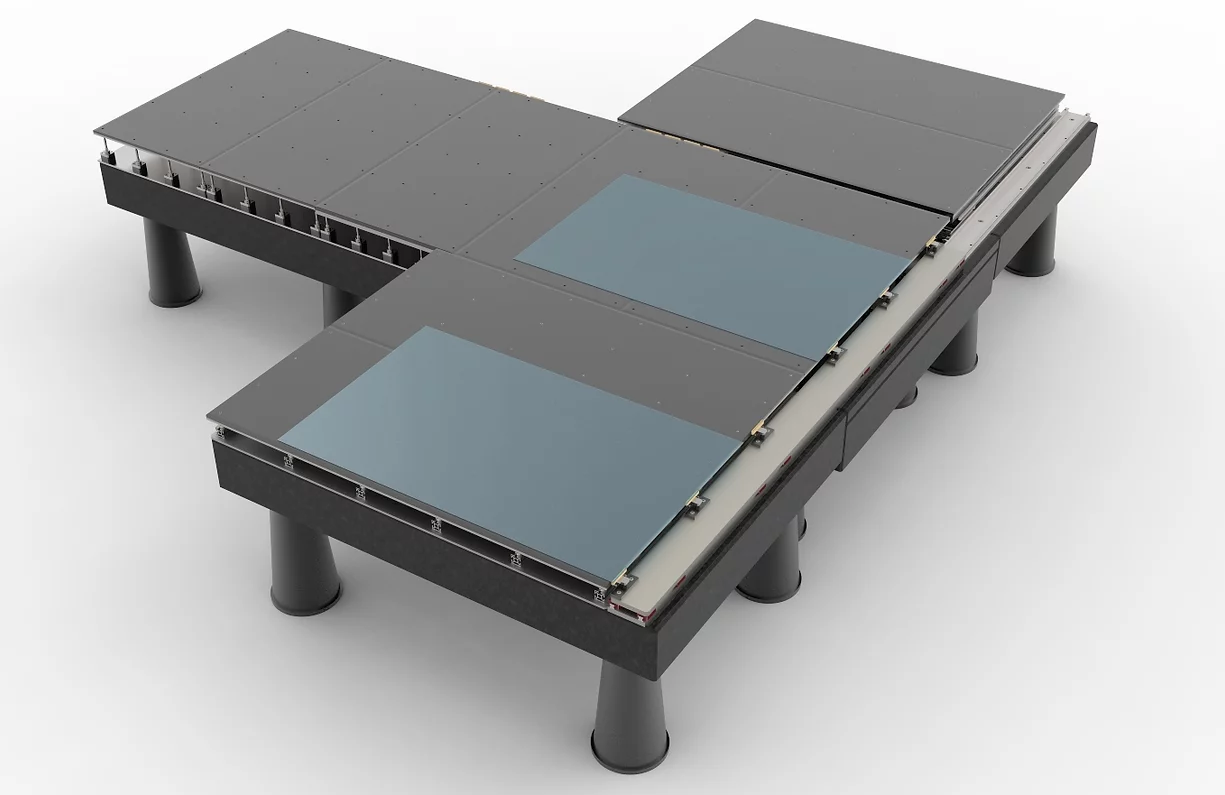

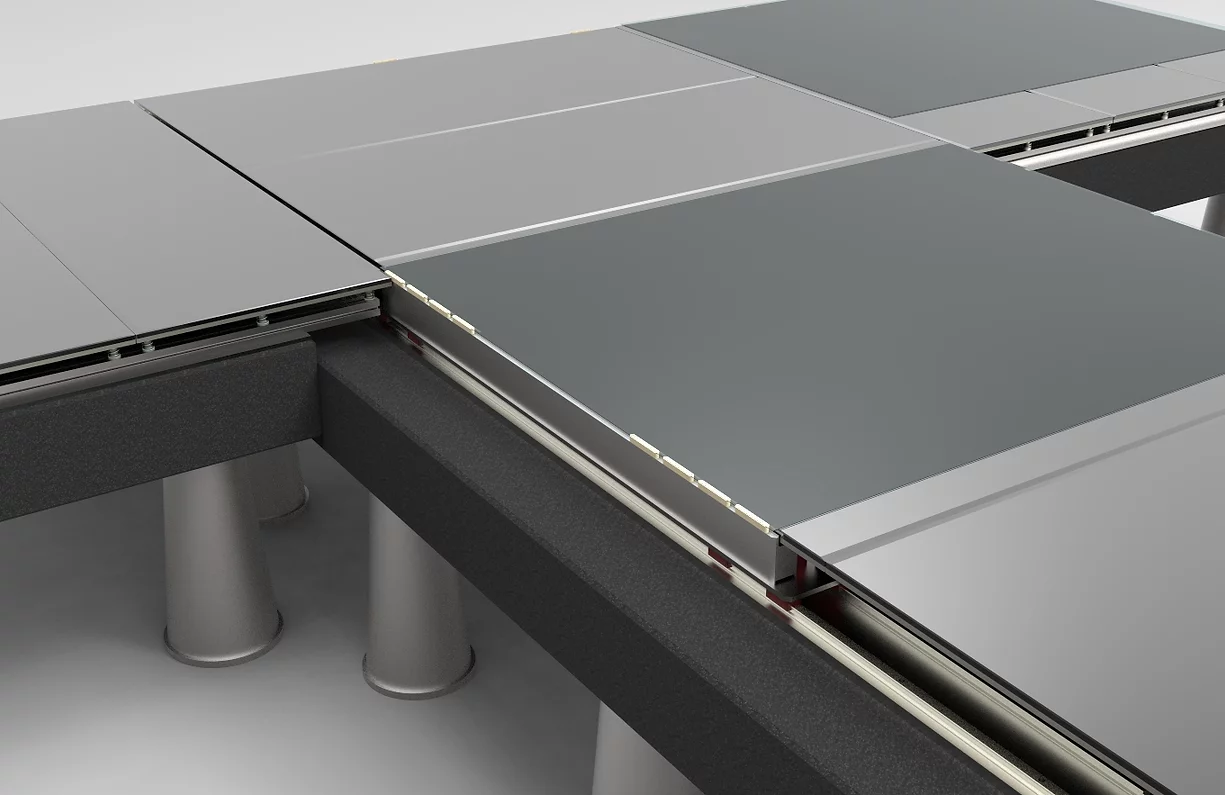

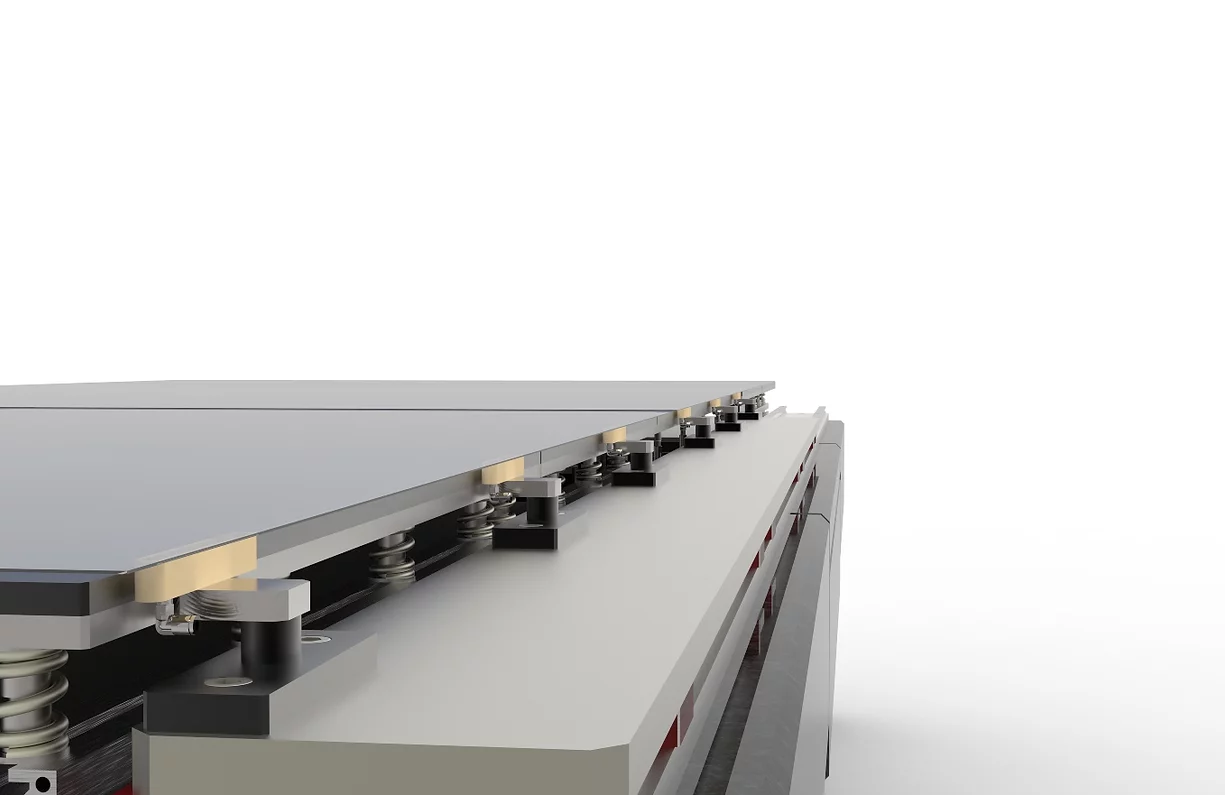

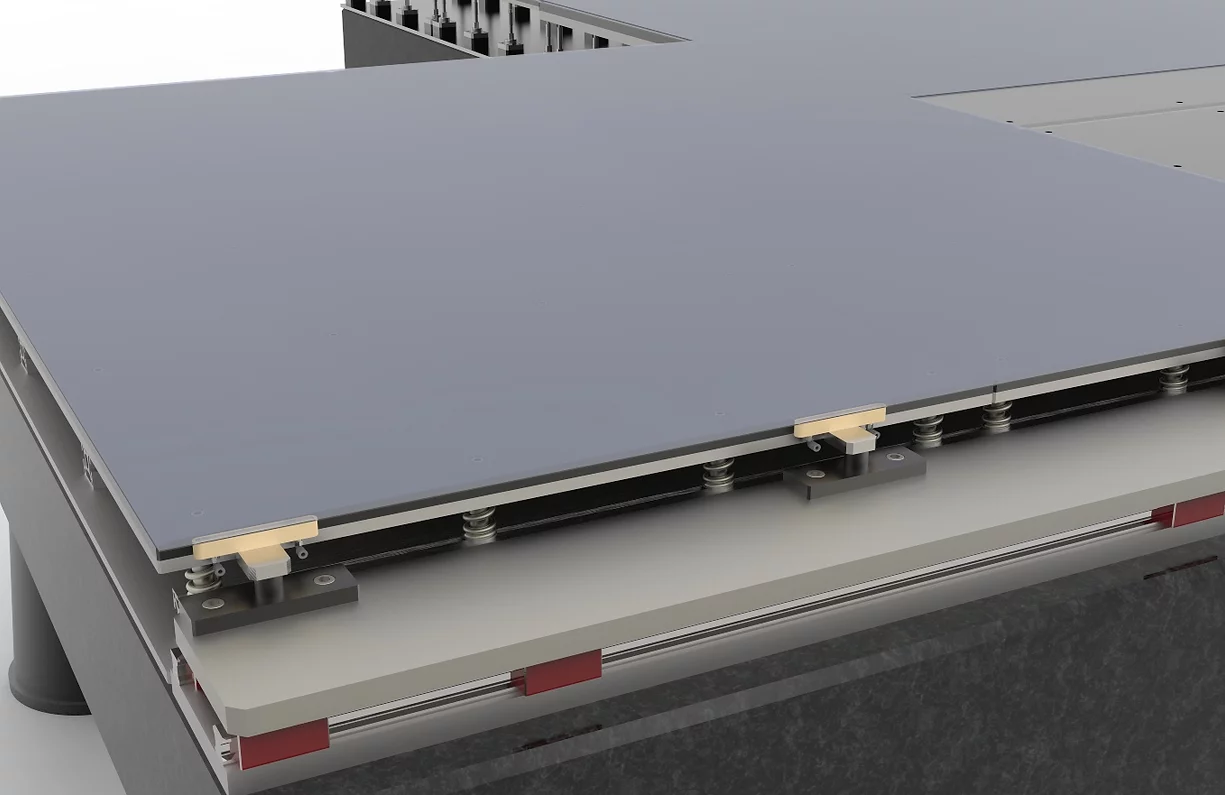

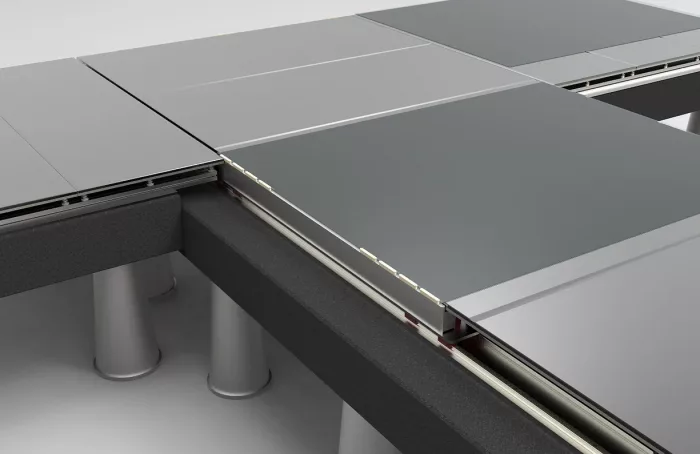

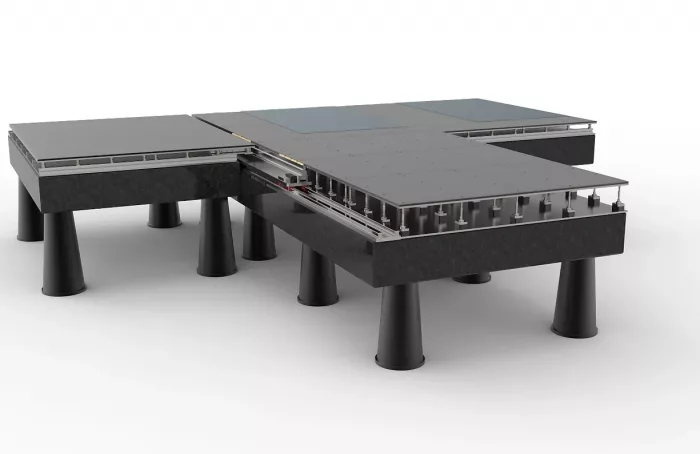

An amazing concept of an aero-mechanical positioning system of massive proportions. This theoretical machine is capable of real-time nanometric positional adjustments of massive GEN-6 glass panels as they float on the mechanically controlled air cushion. The machine transports the very large but very thin panels to a workstation where delicate and extremely accurate lithography procedures take place.
Such high-end equipment is mainly used in the manufacturing of OLED panels.
